Cast Wheels Manufacturers, Ireland

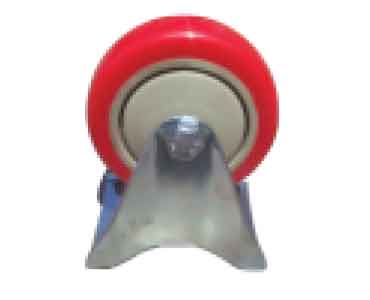

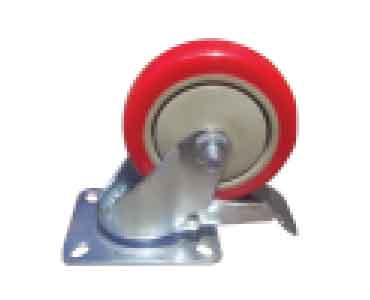

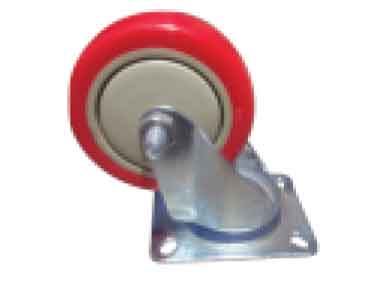

Light Duty(Load Carrying Cap: From 50 kg to 400 kg)

Wheels Size Total Castor Ht. Mounting Dimensions (mm) Drill Size
Base Plate Size PCD
FX SW FX SW FX SW
75 x 25 95 85x60 86x60x3 65x40 65x40 Ø7 Ø7
100 x 32 140 115x 80 95x95x3 85x50 73x73 Ø10 Ø12
150 x 50 188 120x80 130x105x3 85x50 104x75 Ø10 Ø12

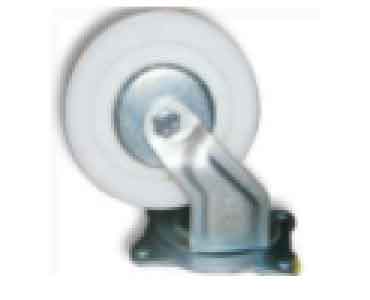

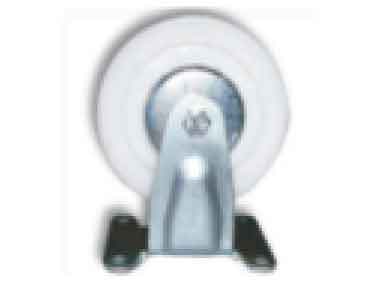

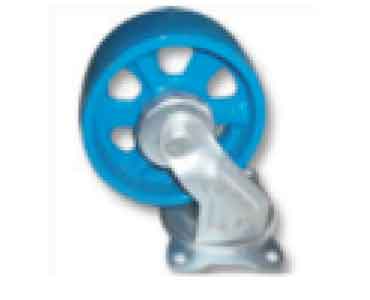

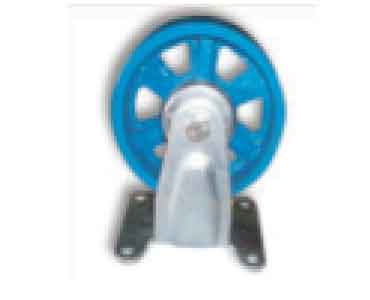

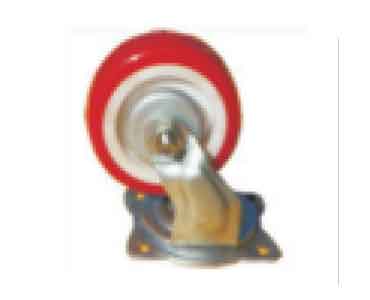

Medium Duty(Load Carrying Cap: From 200 kg to 800 kg)

Wheels Size Total Castor Height Mounting Dimensions (mm) Drill Size
Base Plate Size PCD
100 x 32 130 100 x 80 80 x 60 Ø 9
150 x 50 190 140 x 110 115 x 85 Ø 11
200 x 50 225 140 x 110 115 x 85 Ø 11

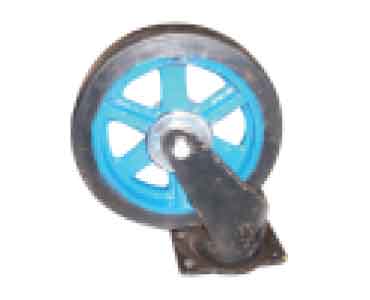

Heavy Duty(Load Carrying Cap: From 500 kg to 5000 kg)

Wheels Size Total Castor Height Mounting Dimensions (mm) Drill Size
Base Plate Size PCD
150 x 50 210 150 x 110 120 x 60 Ø 13
200 x 50 260 150 x 110 120 x 60 Ø 13
200 x 75 268 150 x 110 120 x 60 Ø 13
250 x 50 310 150 x 110 120 x 60 Ø 13
300 x 50 360 150 x 110 120 x 60 Ø 13
300 x 75 368 150 x 110 120 x 60 Ø 13
